Description

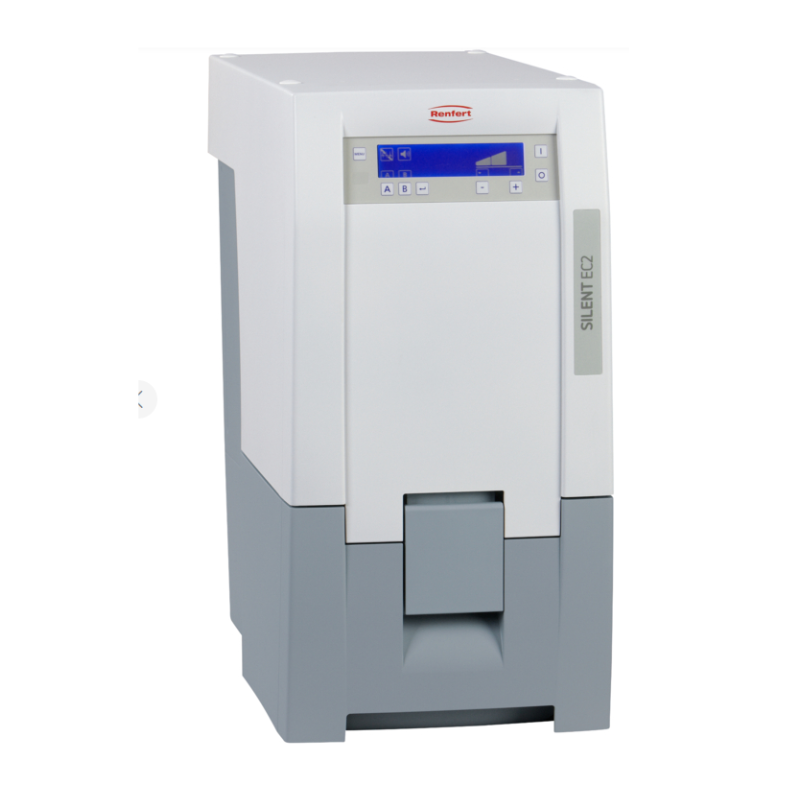

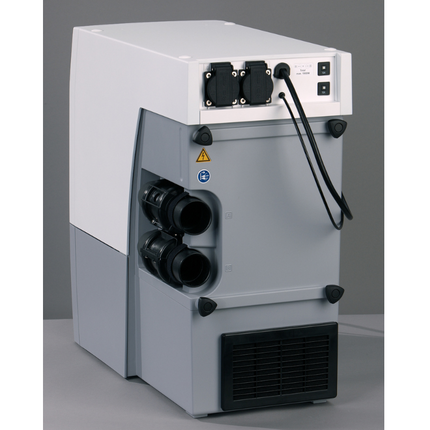

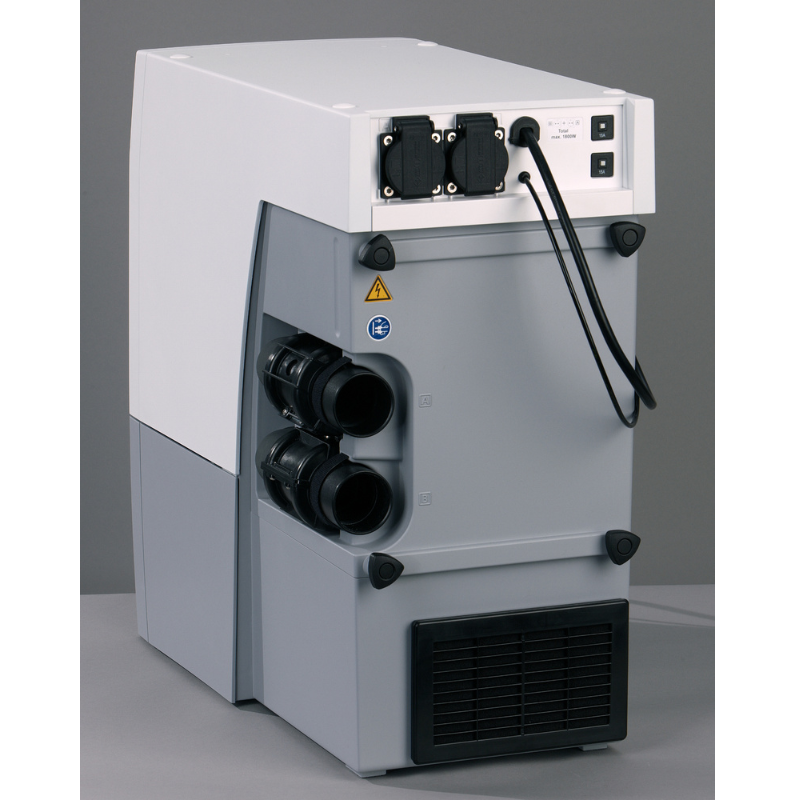

SILENT EC2

Name: SILENT EC2 120V
Brand: Renfert
SKU: 29371000
Price: 3900.0 USD

Two workbench extraction

Powerful, bag-free extraction unit with two independently controlled suction ports, automatic filter cleaning and EC motor technology.

Advantages

Reliable production process through brushless EC motor technology (guaranteed runtime of 5000 operating hours).
Consistant suction power thanks to automatic re-adjustment.
Low operating noise of max. 55 dB (A).

	SILENT EC2, 100-120 V	SILENT EC2, 100 V	SILENT EC2, 220-240 V
Item number	29371000	29372000	29370000
Use	Workplace extraction	Workplace extraction	Workplace extraction
Permissible mains voltage	120 V	100 V	220 - 240 V
Permissible mains frequency	50 - 60 Hz	50 - 60 Hz	50 - 60 Hz
Weight (empty)	18.5 kg 40.8 lbs	18.5 kg 40.8 lbs	18.5 kg 40.8 lbs
Dimensions (W x H x D)	11.2 x 21.1 x 21.2"	11.2 x 21.1 x 21.2"	11.2 x 21.1 x 21.2"
Power consumption			1,610 hp
Connection pressure	4.5 - 8 bar 65 - 116 psi	4.5 - 8 bar 65 - 116 psi	4.5 - 8 bar 65 - 116 psi
Nominal voltage	120 V	100 V	230 V
Volume flow (max.)	3,980 l/min 2.34 ft³/s	3,980 l/min 2.34 ft³/s	3,980 l/min 2.34 ft³/s
Max. depression	262 hPa 3.8 psi	255 hPa 3.7 psi	257 hPa 3.73 psi
Motor technology	EC	EC	EC
Filter technology	Bag- free	Bag- free	Bag- free
Filter quality	Class M according to EN 60335-2-69	Class M according to EN 60335-2-69	Class M according to EN 60335-2-69
Max. permitted connected load of the plug-in socket	430 W	350 W	1,840 W
Total connected power	1,800 W	1,500 W	3,450 W
Number of suction hoses	2	2	2
Sound pressure level (LpA) (at max. volume flow)	55 dB(A)	55 dB(A)	55 dB(A)
Ø suction fittings interior	45 mm 1.77 "	45 mm 1.77 "	45 mm 1.77 "
Ø suction fittings exterior	50 mm 1.97 "	50 mm 1.97 "	50 mm 1.97 "
Fill level dust collector	7 l 1.85 gal	7 l 1.85 gal	7 l 1.85 gal
