Description

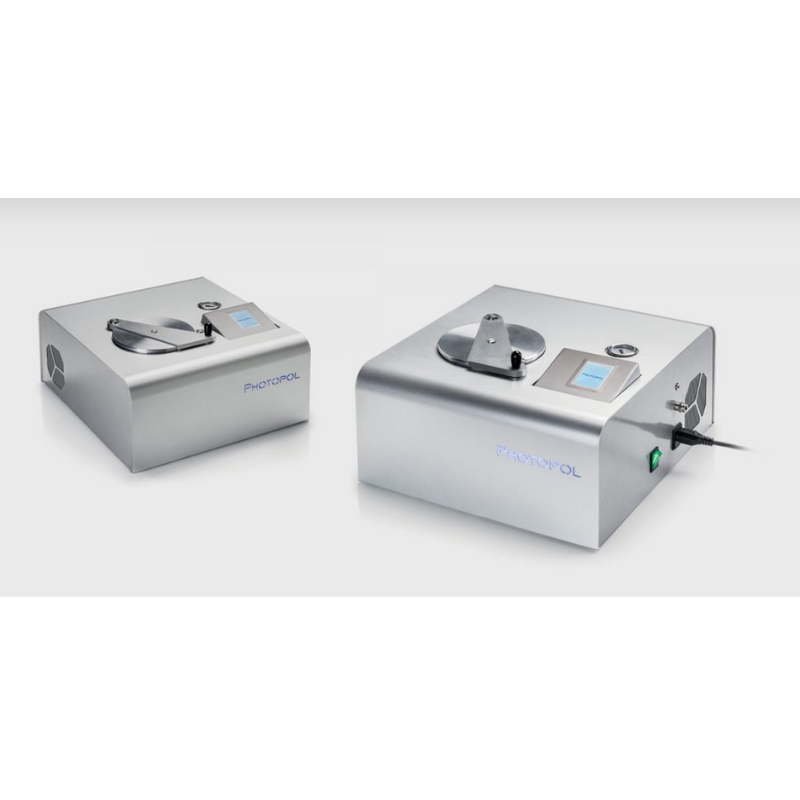

PHOTOPOL VACUUM+GAS (A5408V) is equipped with 6 special circuits (8-LEDs Hi-Power SMD, 48 LEDs in total) with optical reflectors, developed to maximize the irradiation effect. The operating spectrum allows to post-cure components created with 3D printers working both 385nm and 405nm wavelenghts. It features a Touch-Screen Full-Color display to select parameters and to store programs. All curing cycles can be performed under vacuum (a powerful but small oil-less pump is built-in) and the unit can be connected to an external protective gas appliance (Nitrogen N2) to comply with the existing Medical Device Regulations for Class IIa certified materials. The “Vacuum+Gas System” allows to flow into the working chamber only a fixed quantity of Nitrogen (1.5 litres per cycle) with an impressive very low gas consumption.
TECHNICAL FEATURES
VACUUM+GAS System: to comply with the MDR for Class IIa 3D resins
DIGITAL: Software controls and Touch-Screen Full-Color Display
Curing Treatment Area: useful area diameter 135mm x h/80mm
Circuits / LEDs: 6×8 (48 LEDs) – equipped with special ALANOD reflectors
Wavelengh: Spectum 350nm-450nm (specific for 3D printing resins)
Voltage: 230V – 50/60Hz (different voltages available)
Absorption: 500W
External dimensions: mm 400x400x240H
Weight: Net 15kg – Gross 17kg
