Milling Machines

For compatible milling burs for this machine, click here. Streamline Lab Operations Maximize Efficiency ·Automatic Calibration ·Tools Lifetime Display · Remote Connection 90° Vertical Milling Supported Achieve more aesthetic front teeth design with 90° vertical milling Stay in Control The LED light milling progress bar helps you keep track of the milling progress in real-time. Dimension: 443.5 × 718 × 628.5 mmWeight: 87kgInput Voltage: AC 200~240V 50~60HzAxis Quantity: 5-axis simultaneous motionMilling Range: X/Y/Z:167/206/104mm   A:±30° B:±360°Max Rotation Speed: 30,000rpmMilling Materials: G-CAM, Zirconia, Wax, PMMA,  PEEK and soft materialsTools Quantity: 11 (2 + 1 + 0.6 Φ4 calibration bur)

Read more less

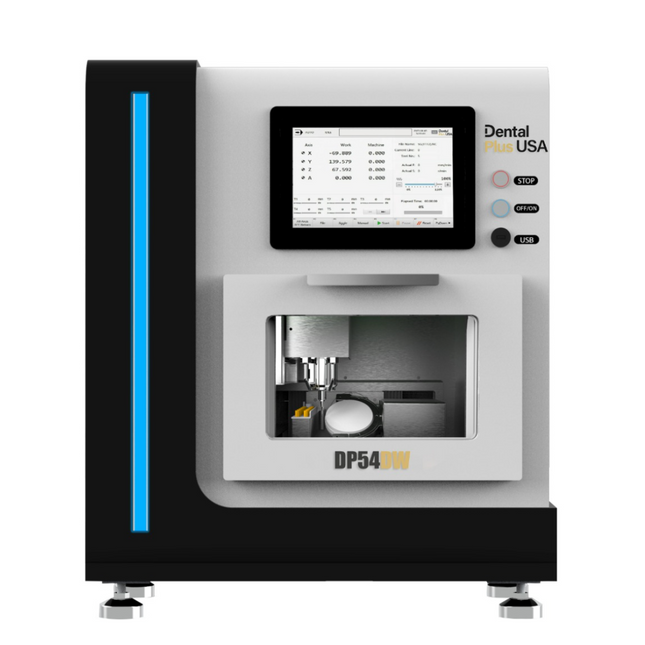

For compatible milling burs for this machine, click here. DP54DW dental titanium metal milling machine uses Meehanite cast iron for its main structure material, also with its one-piece body molding, no weldings are needed, which makes the milling machine much heavier but more stable in milling the titanium restorations,.  It can mill various restorations, such as implant bridge (All-on-4 and All-on-6 implant bridge) and implant bar, titanium crown, titanium premill abutment and different materials such as titanium, soft co-cr, glass ceramic, etc. Equipped with powerful 1.8kw spindle power to ensure the milling precision and stability. Up to 60,000 rpm rotating speed, capable of milling different kinds of materials for implant restorations, also for glass ceramic and premill abutment of the daily work from dental laboratories The DP54DW dental CAD CAM Wet and Dry Milling Machine 90 degree front teeth milling is very useful when detailed milling is required like interproximal areas, and gingiva lines. It eliminates the cumbersome process of hand  and dramatically reduces working time. This generates new application possibilities and more flexibility for creating the expected tooth restoration. The compact and stable basic design of the machine enables precise work in block and blank milling.       Technical highlights 5-axis simultaneous milling High speed metal milling with powerful spindle Expanded 10 tools magazines for uninterrupted milling Milling of all important materials used in the dental field B-axis tilt angle up to 30°  High frequency spindle with up to 60,000 rpm  Integrated control PC with touch screen  Servo motors on all axes  Chip protection of the tool changer

Read more less

For compatible milling burrs for this machine, click here. Streamline Lab Operations Maximize Efficiency ·Automatic Calibration ·Tools Lifetime Display · Remote Connection 90° Vertical Milling Supported Achieve more aesthetic front teeth design with 90° vertical milling Stay in Control The LED light milling progress bar helps you keep track of the milling progress in real-time. Dimension: 443.5 × 718 × 628.5 mmWeight: 87kgInput Voltage: AC 200~240V 50~60HzAxis Quantity: 5-axis simultaneous motionMilling Range: X/Y/Z:167/206/104mm   A:±30° B:±360°Max Rotation Speed: 30,000rpmMilling Materials: G-CAM, Zirconia, Wax, PMMA,  PEEK and soft materialsTools Quantity: 11 (2 + 1 + 0.6 Φ4 calibration bur)

Read more less

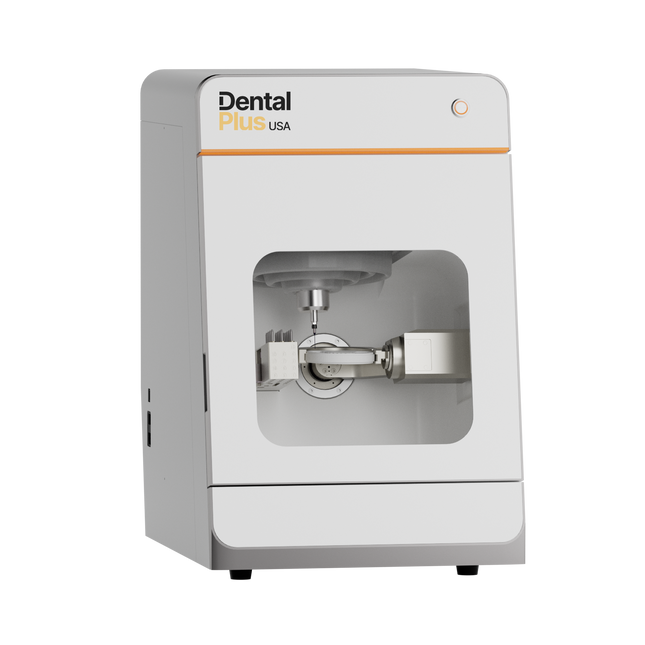

DP55 is a new high-end dry milling machine, designed with precision servo control and all-weather stable production technology for 24-hour efficient continuous milling. Equipped with a high-speed electric spindle from Germany and a plug-and-play design without the need for an air source, it allows for intelligent remote control. Compatible with a variety of materials, its integrated dust-proof design and structural optimization reduce maintenance and enhance efficiency. With a decade of technical accumulation and innovation, DP55 significantly boosts productivity, offering end users a completely upgraded experience. Technical Specifications  Fields of Application  Dry Machining  Materials Zirconia, wax, PMMA, PEEK, Composite Resin, Soft Milling CoCr Sintering Metal Material Specifications Discs: Height 10-30mm, diameter 98.5mm    Blocks up to 40x20x20mm (Max) Indications Crowns, anatomical crowns, screw-retained crowns, inlays, onlays, veneers, telescopic crowns, abutments, bite splints, full dentures, etc. Construction Machine bed made of solid cast aluminum body Number of Axes 5-axes Housing Steel, white high-gloss lacquer finish, main front housing: injection-molded Linear Axes (X/Y/Z) Precision ball screw drive; Travel: 104x60x100mm Rotary Axes (A/B) A-axis: 360°; B-axis:±33° Control Unit 5-axis precision full servo drive system Lighting LED lighting inside the working chamber, with additional status indication Power 1.0KW General High-frequency spindle, automatic tool change, no air cooling required Speed Up to 60,000 rpm Tool Holding Diameter Diameter ⌀4 Power Max. 0.8KW Tool Change Tool magazine for 13 tools, length measurement and tool breakage monitoring via precision measuring key Voltage 100VAC - 130VAC, 200VAC - 235VAC (selectable), 50~60Hz Dust Extraction Filter level: M; Flow rate: 2500L/min Data Wi-Fi, USB, Ethernet port Operating Temperature Between 10°C and 35°C Air Moisture Below 80% (relative), non condensing Dimensions (W/D/H) 442x560x704mm Weight 106KG CAM Software UPCAM, Millbox

Read more less
